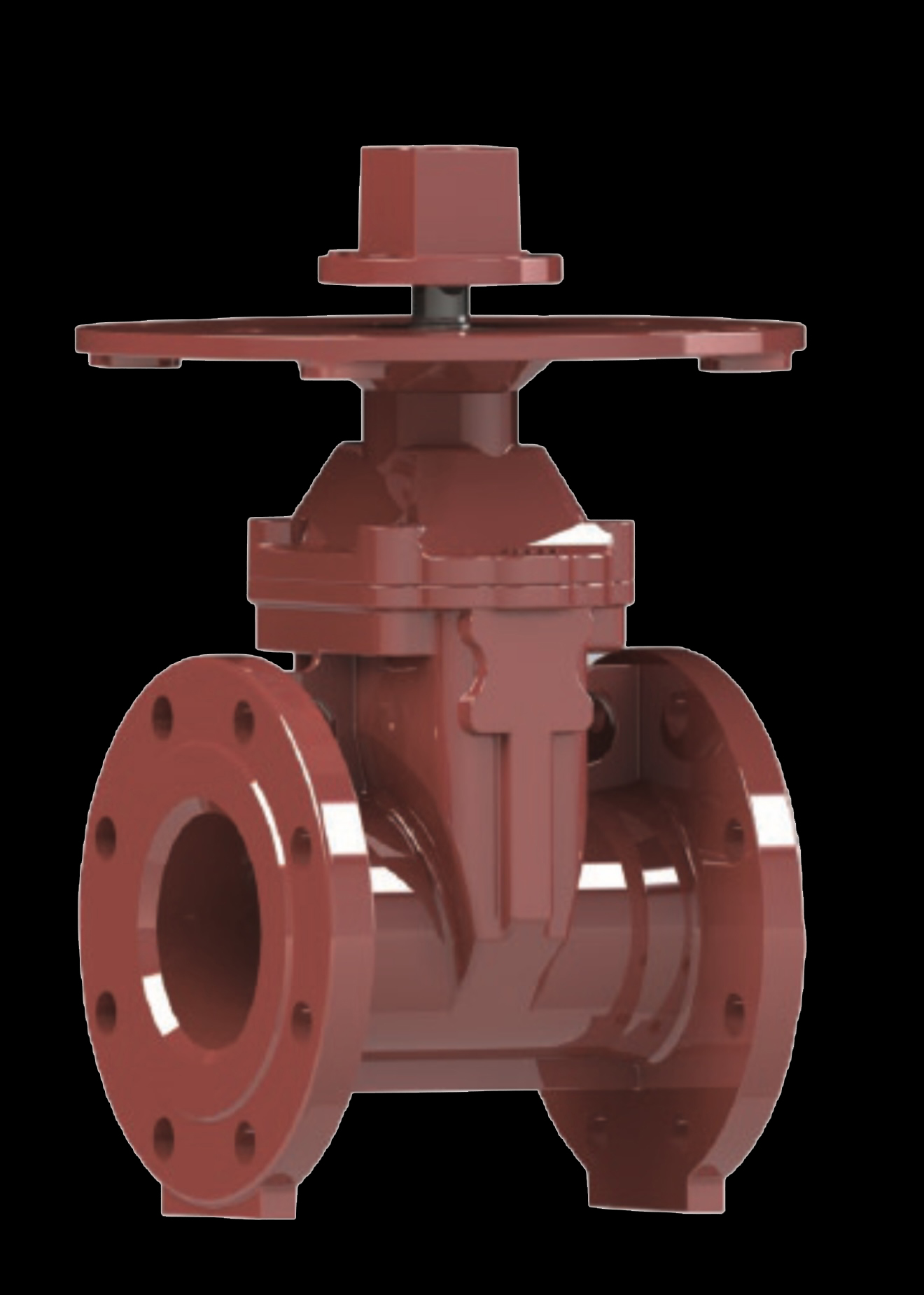

NRS Valves

Description

What are NRS Valve?

NRS Valve, or Non-Rising Stem Gate Valves, are control valves where the stem threads remain inside the valve body during operation. Unlike rising stem valves, the handwheel rotates along the stem without vertical movement, making them ideal for installations with limited overhead clearance.

The NRS gate valve design features a wedge-shaped gate that slides perpendicular to the flow path, providing tight shutoff when closed and minimal pressure drop when fully open.

These valves are fundamental components in fire protection infrastructure, offering reliable isolation points for system maintenance, emergency shutoff, and sectional control.

Understanding the NRS valve catalogue specifications ensures proper selection based on pressure ratings, connection types, and sizing requirements for your specific application.

NRS Valve: Product Details

Habikon Egypt supplies high-performance NRS gate valves engineered to meet the rigorous demands of fire protection systems. Constructed from durable materials with precision machining, these valves deliver consistent performance across diverse operating conditions.

Technical Specifications

Specification	Details
Working Pressure	365 PSI (25 bar)
Connection Ends	FF (Flange-Flange), FG (Flange-Groove), GG (Groove-Groove), GF (Groove-Flange)
Available Sizes	2″ to 24″
Body Material	Ductile Iron / Cast Iron
Stem Type	Non-Rising (NRS)
Seat Material	Bronze or resilient wedge
Operation	Manual handwheel
Standards Compliance	UL/FM approved, NFPA compliant

The non-rising stem configuration provides several operational advantages:

Compact installation footprint, visual position indication through stem threads, and reduced space requirements in tight mechanical rooms or valve chambers.

Available connection configurations, including flanged, grooved, and combination ends, accommodate various piping system designs and installation preferences.

Need expert guidance on valve selection?

Contact Habikon Egypt for technical consultation and competitive quotes.

Benefits & Applications of NRS Valves

NRS gate valves serve as critical control points in fire protection networks, enabling system isolation for maintenance while providing emergency shutoff capability.

Why NRS Valves Are Essential:

• Space-Efficient Design: The Non-rising stem configuration requires minimal vertical clearance, perfect for installations in low-ceiling areas, underground vaults, or congested pipe chases where rising stem valves cannot fit.
• Visual Position Indication: Exposed stem threads clearly display valve position (open/closed) without requiring additional indicators, allowing maintenance personnel to verify status at a glance during inspections.
• Minimal Pressure Loss: Fully open gate valves provide straight-through flow with negligible pressure drop, maintaining optimal system hydraulic performance and ensuring adequate water delivery to sprinkler heads.
• Durable Construction: Ductile iron bodies with corrosion-resistant coatings withstand harsh environmental conditions, providing decades of reliable service with minimal maintenance requirements.
• Code Compliance: UL/FM-approved valves meet NFPA 13, NFPA 14, and NFPA 20 requirements, ensuring your fire protection system passes inspections and maintains insurance coverage validity.

Real-World Applications:

1. Industrial Manufacturing: Factories install NRS valves as sectional control points, allowing maintenance teams to isolate specific production zones without shutting down entire sprinkler systems during equipment repairs.
2. Healthcare Facilities: Hospitals require code-compliant isolation valves on every floor and wing, enabling emergency shutoff during water damage incidents while maintaining protection in unaffected areas.
3. Commercial High-Rises: Office towers position NRS valves at riser connections and floor control assemblies, providing building engineers with precise control over standpipe and sprinkler zones during system testing.
4. Warehouse Distribution Centers: Logistics facilities use large-diameter NRS valves (8″-12″) on main supply lines, managing water flow to extensive ESFR sprinkler arrays protecting high-rack storage areas.
5. Shopping Centers: Retail complexes install grooved-end NRS valves for rapid installation and maintenance flexibility, reducing system downtime during tenant renovations or seasonal modifications.

Why Choose NRS Valves from Habikon Egypt?

Habikon Egypt stands as a trusted fire protection systems contractor and distributor, delivering comprehensive solutions from initial design through installation and ongoing maintenance.

What we offer:

• Internationally Certified Products: All NRS Valves supplied carry UL/FM certifications and meet international quality standards, guaranteeing performance reliability and regulatory acceptance.
• NFPA & Local Standards Compliance: Our valve selections align with NFPA 13 (sprinkler systems), NFPA 14 (standpipes), NFPA 20 (fire pumps), and Egyptian Civil Defense requirements for complete code compliance.
• Technical Expertise: Certified fire protection engineers assist with valve sizing calculations, connection type selection, and system layout optimization based on hydraulic requirements and site constraints.
• Complete Project Capability: From conceptual design and equipment procurement through installation supervision, pressure testing, and commissioning, we manage every project phase with professional precision.
• Diverse Inventory: Our NRS valve catalogue includes sizes from 2″ to 24″ with multiple connection configurations, ensuring immediate availability for standard applications and special project requirements.
• Competitive Pricing: Direct manufacturer relationships enable attractive nrs valves price points without sacrificing quality, making professional fire protection accessible across project budgets.
• After-Sales Support: Comprehensive maintenance programs, periodic valve inspections, and rapid replacement services keep your fire protection systems operational and compliant.

We also have : Fire Hose Reel And Extinguisher Cabinet

Ready to specify reliable NRS valves for your project?

Contact Habikon Egypt today for technical data sheets and customized quotations.

FAQs

What is the difference between an NRS and an RS gate valves?

NRS (Non-Rising Stem) valves have stems that rotate in place with threads inside the body, requiring less overhead space.

RS (Rising Stem) valves feature stems that rise vertically when opening, providing clear position indication but needing more clearance.

Are NRS valves suitable for all fire protection applications?

Yes, NRS gate valves work excellently in sprinkler systems, standpipes, and fire pump installations. They’re particularly advantageous in underground vaults, shallow trenches, or locations with limited vertical clearance where rising stem valves cannot be accommodated.

What connection types are available for NRS valves?

Standard configurations include FF (flanged both ends), FG (flanged-grooved), GG (grooved both ends), and GF (grooved-flanged). Grooved connections enable faster installation, while flanged ends provide traditional bolted joints for permanent installations.

What is the typical price range for NRS valves in Egypt?

NRS valve pricing varies based on size, connection type, and certification requirements. Contact Habikon Egypt with your project specifications for detailed quotations reflecting current market rates and volume discounts for large installations.

Do NRS valves require special maintenance procedures?

Minimal maintenance is needed, typically annual operation through full open-close cycles and quinquennial internal inspections per NFPA 25 requirements. Habikon Egypt offers maintenance contracts covering periodic testing, lubrication, and documentation for compliance records.
